What is Radio Remote?
Radio Remote Controller

Radio Control System Best For Crane/Mobile/Forestry Application/Lift equipment. Durable nylon-fiber housing for extra shock resistance. Low power consumption with 2 AA batteries (last up to 2 months in normal operation).

Radio Remote
Remote Controller-F24 Series
  • Durable nylon-fiber housing for extra shock resistance.
  • Low power consumption with 2 AA batteries
    (last up to 2 months in normal operation)
  • Operating range up to 100 meters.
  • Programmable function setting through Windows-based software.
  • Economic efficiency, ease of operation.
  • Pre-wiring standard cable making wiring procedures easier.
  • 100% compatible components reducing stock of spare part.
  • Safety features:4.3 billion unique ID code.
  • Hamming code
  • Enhanced watch-dog circuit
  • Radio Control System Best For Crane/Mobile/Forestry Application/Lift equipment.

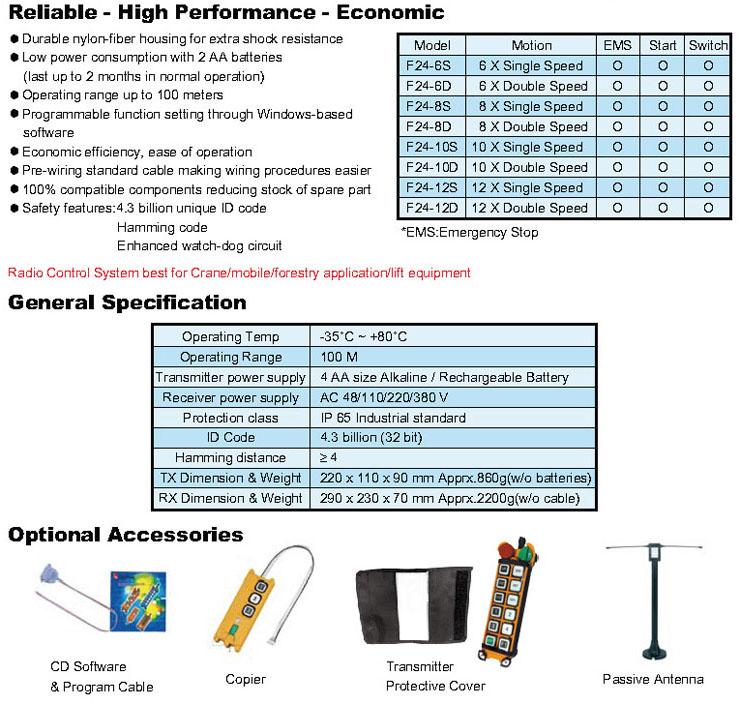

Specifications

F24-6S

  • 6 Single-speed motion, 1 Emergency stop, 1 Start,1 Switch.

F24-6D

  • 6 Double-speed motion, 1 Emergency stop, 1 Start,1 Switch.

F24-8S

  • 8 Single-speed motion, 1 Emergency stop, 1 Start,1 Switch.

F24-8D

  • 8 Double -speed motion, 1 Emergency stop, 1 Start,1 Switch.

F24-10S

  • 10 Single-speed motion, 1 Emergency stop, 1 Start,1 Switch.

F24-10D

  • 10 Double -speed motion, 1 Emergency stop, 1 Start,1 Switch.

F24-12S

  • 12 Single-speed motion, 1 Emergency stop, 1 Start,1 Switch.

F24-12D

  • 12 Double -speed motion, 1 Emergency stop, 1 Start,1 Switch.

Features

  • Operating Temp:-35?C ~ +80?C
  • Operating Range:100M
  • Transmitter power supply: 4 AA size Alkaline / Rechargeable Battery
  • Receiver power supply: AC 48/110/220/380V
  • Protection class: IP 65 Industrial standard
  • ID Code: 4.3 billion(32 bit)
  • Hamming distance: = 4
  • Transmitter Dimension & Weight: 220 x 110 x 90 mm Apprx.860g (w/o batteries)
  • Receiver Dimension & Weight: 290 x 230 x 70 mm Apprx.2200g (w/o cable)
Joystick
Double Joystick with 5-Speed
  • F24-60 series is particular suitable for control of Tower Cranes, Overhead Cranes and Concrete pumps. This particular model is equipped with most sophisticate safety features for making the entire operation safe.
  • Fully programmable relay configuration with maximum 16 relays output per command.(No extra extension unit required).
  • Durable nylon-fiber housing for extra shock resistance.
  • Operating range up to 100 meters.
  • Pre-wiring standard cable making wiring procedures easier.
  • New waist belt provide maximum comfort for operator(Optional)
  • 3 stages LED battery power indicator.
  • Acceleration delay time control(Providing smooth moving for multiple speeds cranes)
  • Safety features:4.3 billion unique ID code/Hamming code/Enhanced watch-dog circuit.

Specifications

F24-60 Transmitter

  • Double Joystick
  • 6 Single Step Buttons(Including start button)
  • 1 Emergency button(EMS),
  • 1 Rotary Key Switch.
  • 4 Selector Switches

F24-60 Receiver

  • Max. 40 relay output (Programmable)
  • NC/NO relay (Optional)
  • External passive antenna (Optional)

Features

  • Operating Temp:-35?C ~ +80?C
  • Operating Range:100M
  • Transmitter power supply: 4 AA size Alkaline / Rechargeable Battery
  • Receiver power supply: AC 48/110/220/380V
  • Protection class: IP 65 Industrial standard
  • ID Code: 4.3 billion(32 bit)
  • Hamming distance: = 4
  • Transmitter Dimension & Weight: 220 x 110 x 90 mm Apprx.860g (w/o batteries)
  • Receiver Dimension & Weight: 290 x 230 x 70 mm Apprx.2200g (w/o cable)
